Product Description
Plastic Drainage Board is a highly engineered vertical drainage solution widely used in soft soil consolidation projects. Manufactured from high-quality HDPE or PVC materials, the board features a structured core with longitudinal channels that efficiently transport water under pressure conditions.

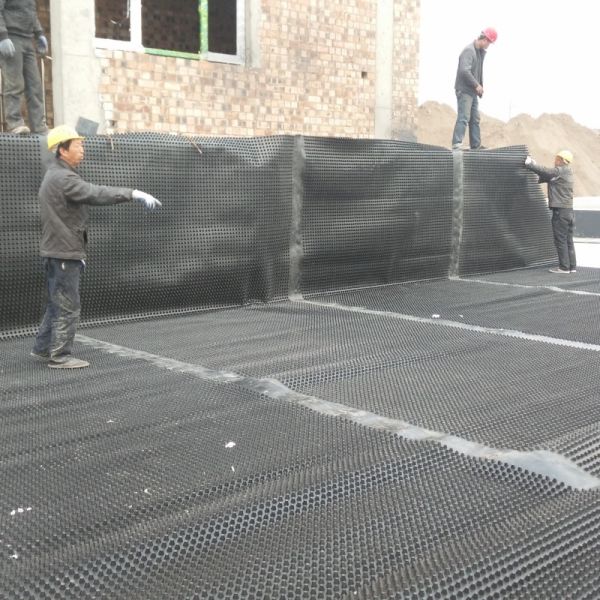

Compared with traditional sand drains or gravel layers, this product offers faster drainage paths, reduced settlement time, and significantly lower construction cost. Its lightweight structure allows rapid installation with minimal disturbance to soil layers, making it especially suitable for large-scale infrastructure such as highways, ports, and reclamation projects.
The optimized rib structure ensures high compressive resistance while maintaining consistent water flow even under heavy loads. This makes it a reliable choice for long-term drainage performance in demanding geotechnical environments.
Technical Specification Table
| Parameter |
Unit |
Value |
Notes |
| Material Type |
— |
HDPE PVC |
Virgin material |
| Board Height |
mm |
20 / 25 / 30 |
Customizable |
| Thickness |
mm |
0.8–1.5 |
Core thickness |
| Width |
m |
1–3 |
Standard roll |
| Length |
m |
4–20 |
Custom available |
| Tensile Strength |
N/100mm |
≥600 |
High durability |
| Elongation at Break |
% |
≥25 |
Flexible performance |
| Compression Strength |
KPa |
≥350 |
Long-term load |
| Flow Capacity |
cm³/s |
≥10 |
At 150KPa |
| Water Storage |
L/m² |
4–6 |
Enhanced retention |
| Low Temp Resistance |
℃ |
-10 No crack |
Cold climate use |
| Heat Aging Retention |
% |
≥80 |
Long-term stability |
| Installation Speed |
m/day |
≥15000 |
Per machine |
Why Choose Us
We supply engineered drainage solutions, not just materials.
Our production line uses high-density virgin polymers to ensure stable performance even under extreme conditions. Each batch undergoes strict quality testing including tensile strength, compression resistance, and long-term aging performance.
We understand contractor needs, so we provide optimized roll sizes for faster installation and reduced labor cost. Our technical team also supports project design consultation, helping buyers select the correct height and flow capacity.
Global export experience ensures compliance with international standards and smooth logistics support.
FAQ
Q1 What is the main advantage over sand drains
A It significantly reduces construction time and cost while improving drainage efficiency.
Q2 Can it be used in marine or reclamation projects
A Yes it performs well under high pressure and saturated soil conditions.
Q3 How long does it last
A Typically over 50 years under proper installation conditions.
